Plot a cohort-by-time effect matrix as a heatmap — plot_effect

Draws one or more `nabs_effect_cell_tbl` objects as cohort (rows) by relative or calendar time (columns) heatmaps, with fill encoding the point estimate on a diverging scale centred at zero.

Usage

plot_effect_matrix(
  ...,
  axis = c("event", "calendar"),
  facet = TRUE,
  show_estimates = FALSE,
  show_se = FALSE,
  digits = 2,
  text_size = 2.6,
  title = NULL,
  caption = NULL,
  low = "#3182BD",
  mid = "#F7F7F7",
  high = "#DE2D26",
  limits = NULL,
  na_color = "grey92",
  xlab = NULL,
  ylab = "Onset cohort",
  legend_title = "Effect",
  base_size = 11
)

Arguments

...: One or more `nabs_effect_cell_tbl` objects (bare args or a single list), typically from [nabs_effect_cells()] or [as_nabs_effect_cells()].
axis: `"event"` (default) puts `event_time` on the x axis; `"calendar"` uses `calendar_time`.
facet: Logical; facet by `method` when more than one is present. Default `TRUE`.
show_estimates: Logical; print the rounded estimate in each tile. Default `FALSE`.
show_se: Logical; print the standard error in parentheses beneath the estimate (implies showing the estimate). Cells with `NA` SE show the estimate alone. Default `FALSE`.
digits: Rounding for the in-tile estimate / SE labels. Default `2`.
text_size: Font size for the in-tile labels. Default `2.6`.
title: Plot title. `NULL` (default) auto-titles a single-method plot with its display label (the fect family shows as `"Fect FE"` / `"Fect IFE"` / `"Fect MC"`; `"DCDH"` is unchanged); faceted plots are left untitled (the strips name the methods). Pass a string to override, or `NA` to suppress.
caption: A short gloss of the axes printed under the plot. `NULL` (default) auto-writes a one-line note (rows = onset cohort, columns = time since onset / calendar time), and appends a note that fect has no pre-onset cells whenever a fect-family panel is shown. Pass a string to override, or `NA` to suppress.
low, mid, high: Diverging fill colours for negative / zero / positive estimates.
limits: Optional length-2 numeric fill limits; `NULL` (default) makes the scale symmetric around zero from the data range.
na_color: Fill for empty `(cohort, time)` cells. Default `"grey92"`.
xlab, ylab, legend_title: Axis and legend labels.
base_size: Base font size for `theme_minimal()`.

Value

A `ggplot` object.

Details

The intended use is **one method per plot**: a single-method call gets the method as its title automatically. Passing several methods facets them with a shared scale, but that side-by-side view gets crowded quickly, so for careful comparison prefer separate per-method heatmaps.

Examples

raw <- expand.grid(cohort = 3:6, event_time = -2:4)
raw$estimate  <- with(raw, ifelse(event_time < 0, 0,
                                  0.15 * event_time + 0.05 * (cohort - 4)))
raw$std.error <- 0.07
cells <- as_nabs_effect_cells(raw, method = "FE", outcome = "y")

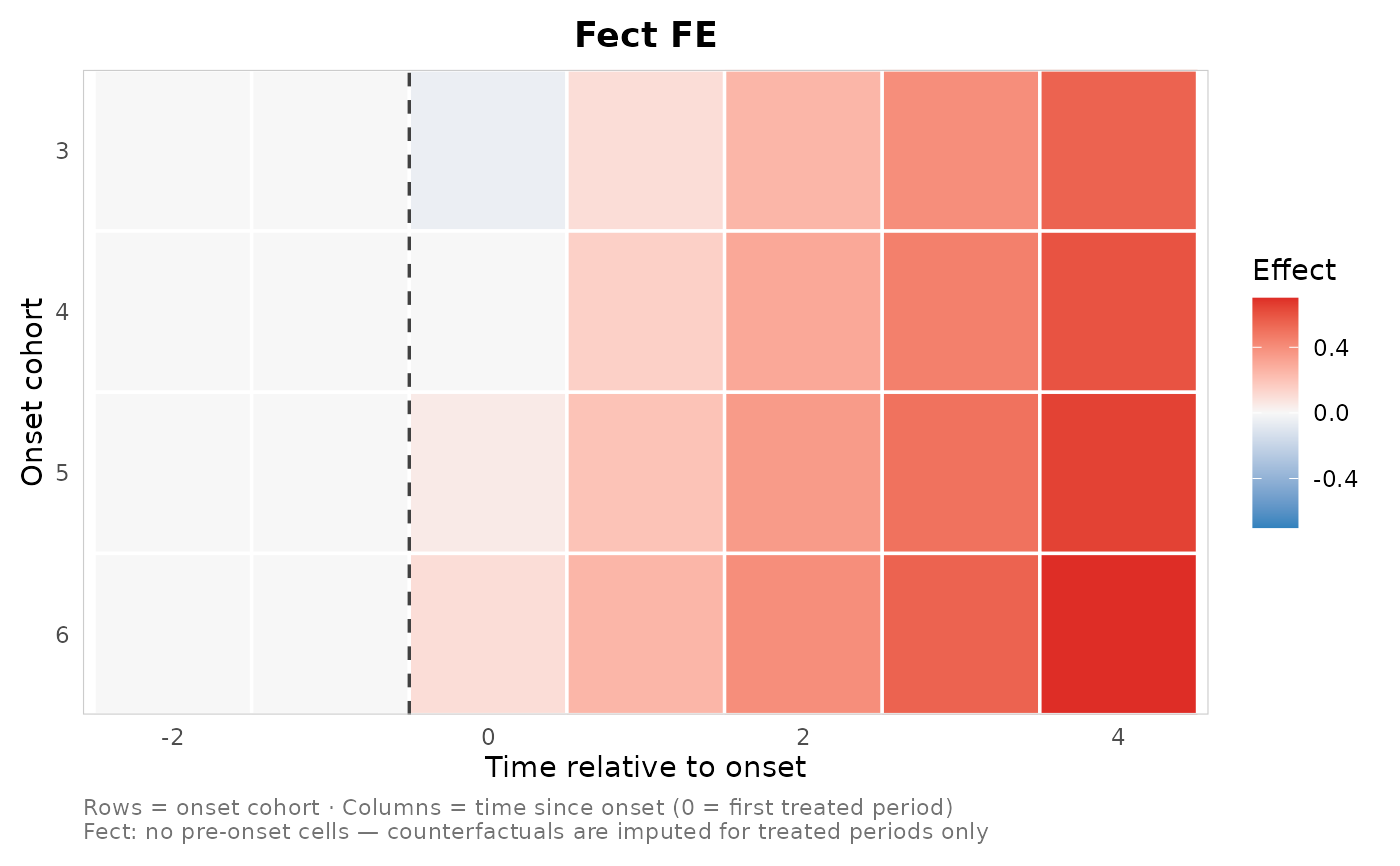

plot_effect_matrix(cells)                                   # auto title "FE"

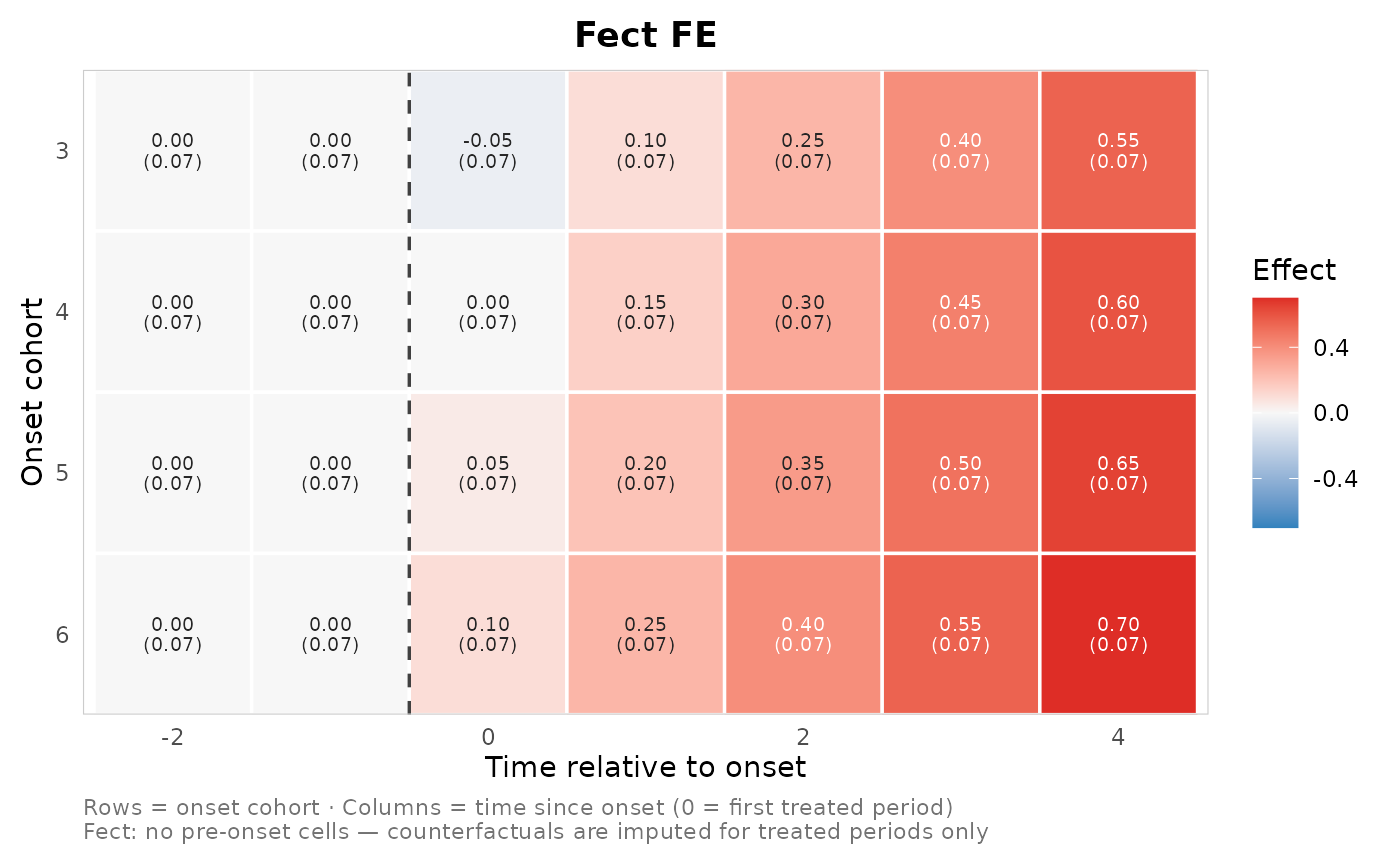

plot_effect_matrix(cells, show_estimates = TRUE, show_se = TRUE)
